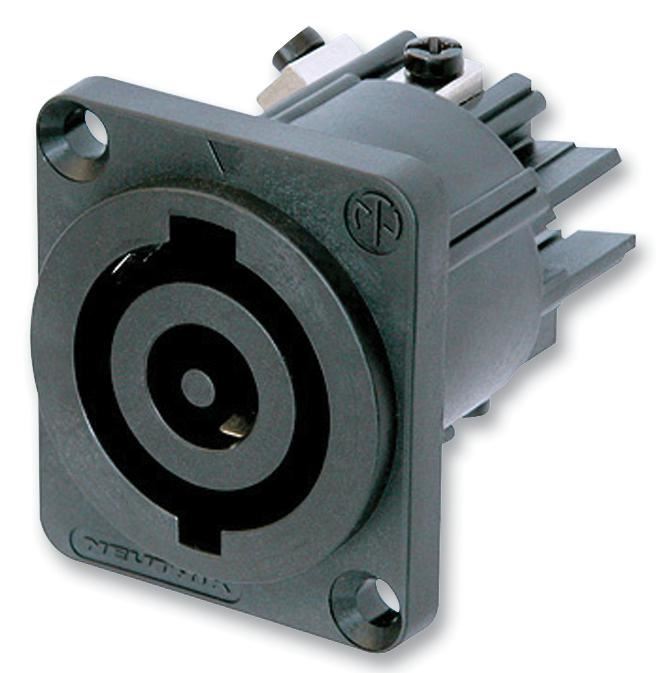

Powercon Chassis Connector, 32 Amp AC

SKU C3-CN12073
by NEUTRIK
Original price £26.83
Original price £26.83 - Original price £26.83
Original price £26.83
Current price £14.92
£14.92 - £14.92
Current price £14.92
Save 44% Save 44% (£11.91)
Availability:
in stock, ready to be shipped
The NAC3MP-HC is a Male AC Power Chassis Connector with screw contact termination, 4µm silver-plated bronze (CuSn0.2) contact, steel Ck67 locking element and polyamide (PA 6.6 25% GR) shell. The PowerCon is an extremely robust and reliable locking single phase AC appliance cable connector for high current capacity (32A rated), 14 to 10AWG wire. It is conceived as a non-standardized 3-pole connection system without breaking capacity to serve the needs of high power distribution systems. The connectors comprise of contacts for phase, neutral and protective earth (ground) conductors rated for currents up to 32A and for voltages up to 250V.

<=3mR Contact resistance

>10GR (initial) Insulation resistance

4kVDC Dielectric strength

Premating contact for protective earth

Fast and easy locking system to prevent unintentional disengagement

8 to 20mm Cable outer diameter range

Wiring with screw-type terminals

Excellent cable handling and protection

Gender: Plug

Voltage Rating: 250VAC

Current Rating: 32A

Contact Termination Type: Screw
