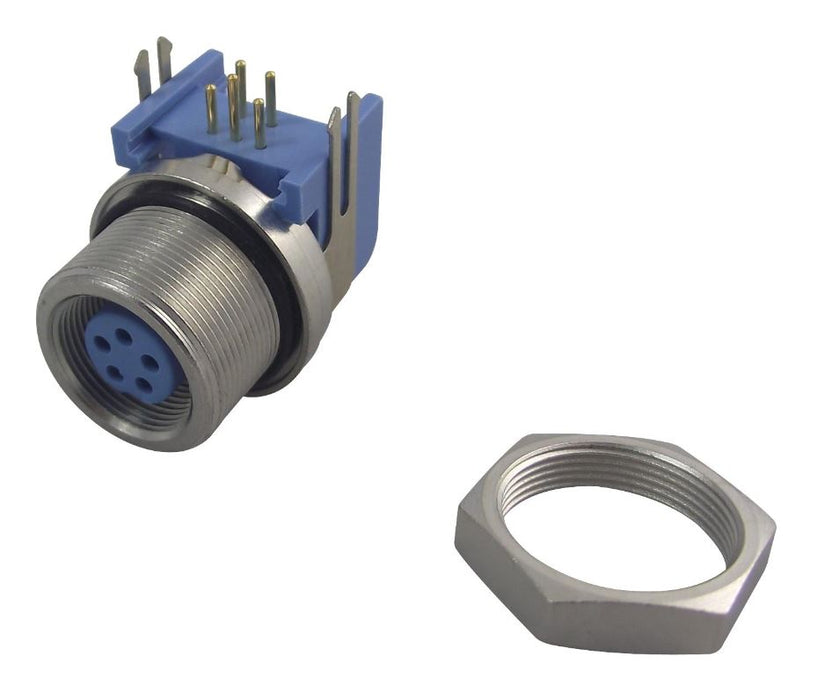

Socket, PCB, Right Angle, 5 Way

SKU C3-CN12655
Original price £50.38 - Original price £50.38
Original price £50.38
£50.67
£50.67 - £50.67
Current price £50.67
Availability:
Only 2 left!
The T01-0560-S05 is a 5-way Right Angle Shielded Circular Socket with gold-plated contacts, a CuZn shell and solder termination. The T01 panel mount subminiature connector is a liquid and dust tight system, can be used for application where shielding is a requirement, it accepts 24AWG wire. There is also good resistance against UV beams because of the Optaloy plating for all metal shell parts. The reasonable shielding, the small diameters, the over-moulded connector with cable and the use of metallic parts makes TRIADTM01 also usable in harsh environments such as a factory.

Sealed environment protection

PBT insert

UL94V-2 Flammability rating

IP65 Protection rating

<6mR Contact resistance

60VAC Voltage rating

625VAC Test voltage

-40 to 85°C Operating temperature range

Applications

Industrial, Safety, Medical

Product Range: T01 Series

Circular Connector Shell Style: Panel Mount Receptacle

No. of Contacts: 5Contacts

Circular Contact Type: Solder Socket

Connector Body Material: Copper Alloy Body

Contact Plating: Gold
