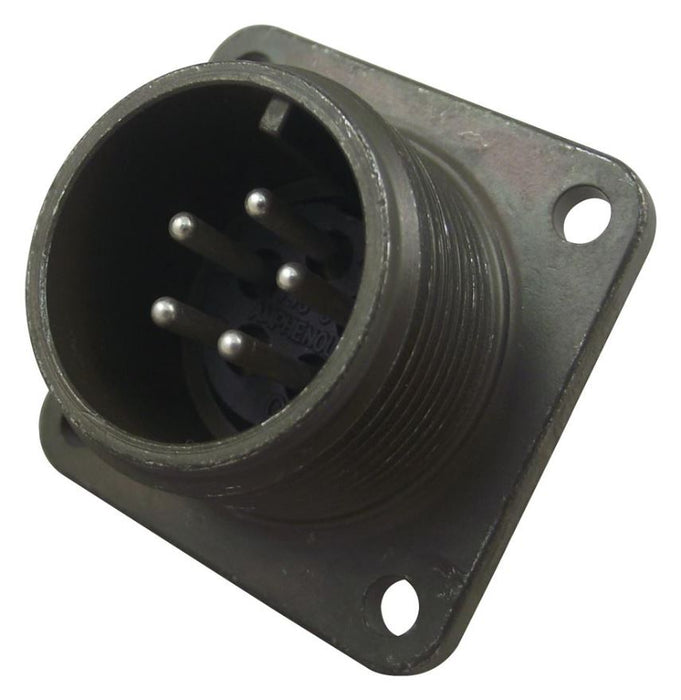

Plug, Flange, 5 Way
5 shell styles with 19 shell sizes
Single key/keyway shell polarization
High reliability, moisture and corrosion resistant
100 mating cycles, IP67 environmental protection
Operates at extreme temperature range of -55°C to +125°C
Minimum insulation resistance is 5000Mohm at 25°C
Quick mating, threaded coupling
Environmental sealing, low weight and cost effective
Aluminium alloy body material with olive drab chromate over cadmium plating
Brass, copper alloy solder pin contacts with silver plating
Applications
Aerospace, Defence, Military, Industrial
Military Specification: MIL-DTL-5015 Series
Circular Connector Shell Style: Box Mount Receptacle
No. of Contacts: 5Contacts
Circular Contact Type: Solder Pin
Coupling Style: Threaded
Insert Arrangement: 14S-5
Connector Body Material: Aluminium Alloy Body
Connector Body Plating: Olive Drab Chromate over Cadmium
Contact Material: Brass, Copper Alloy
Contact Plating: Silver
Insert Rotation: N
Service Class: General Duty
Product Range: MIL-DTL-5015
