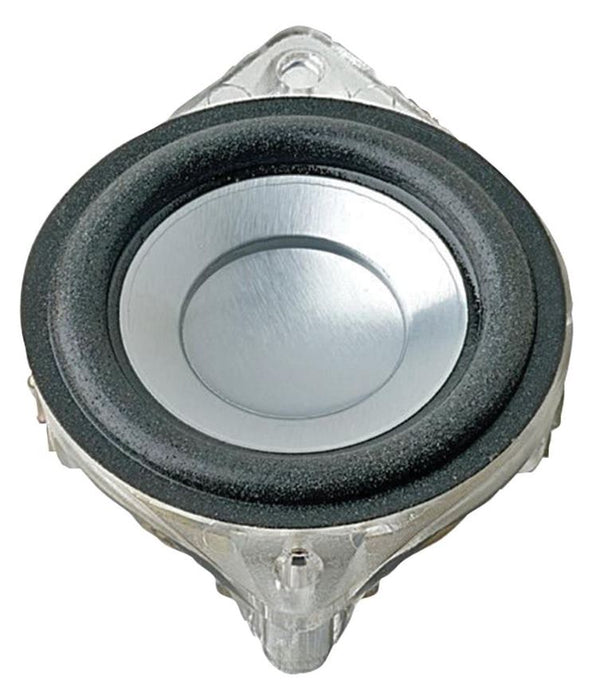

5W Full Range Driver 1.5" 4R, IPX4
Suitable for Flat TVs, info terminals and other compact devices speech and music reproduction
Output power: 5W rms
Maximum power: 8W
Nominal impedance: 4R
Frequency response: 100Hz to 20kHz
Mean SPL: 74dB (1W@1m)
Resonant frequency: 155Hz
Excursion limit: ±3.4mm
DC resistance: 3.8R
Mechanical Q factor: 5.11
Electrical Q factor: 0.86
Total Q factor: 0.74
Equivalent volume: 0.06l
Effective piston area: 6.2cm²
Dynamically moved mass: 1.0g
Inductance of the voice coil: 0.17mH
Connections: Soldering ears
IP rating: X4 (EN60529) - mechanical casings and electrical enclosures against intrusion, dust, accidental contact, and water
Dimensions (HxWxD): 37x37x24mm
Weight: 33.1g
Applications
Audio, Business, Commercial, Education, Installations, Office, Public, Signalling
Driver Type: Full-range
External Diameter - Metric: 36mm
External Width - Metric: 37mm
Impedance: 4ohm
Power Rating Nom: 5W
Sound Level SPL: 74dB
Speaker Shape: Round with Square Frame
External Diameter - Imperial: 1.417"
Resonant Frequency: 155Hz
External Width - Imperial: 1.457"
Frequency Response Min: 100Hz
Frequency Response Max: 20kHz
Speaker Mounting: Through Hole
Power Rating Max: 8W
External Length - Metric: 37mm
External Depth - Metric: 24mm
External Length - Imperial: 1.457"
External Depth - Imperial: 0.945"
Product Range: WHALE Ceiling Speakers
