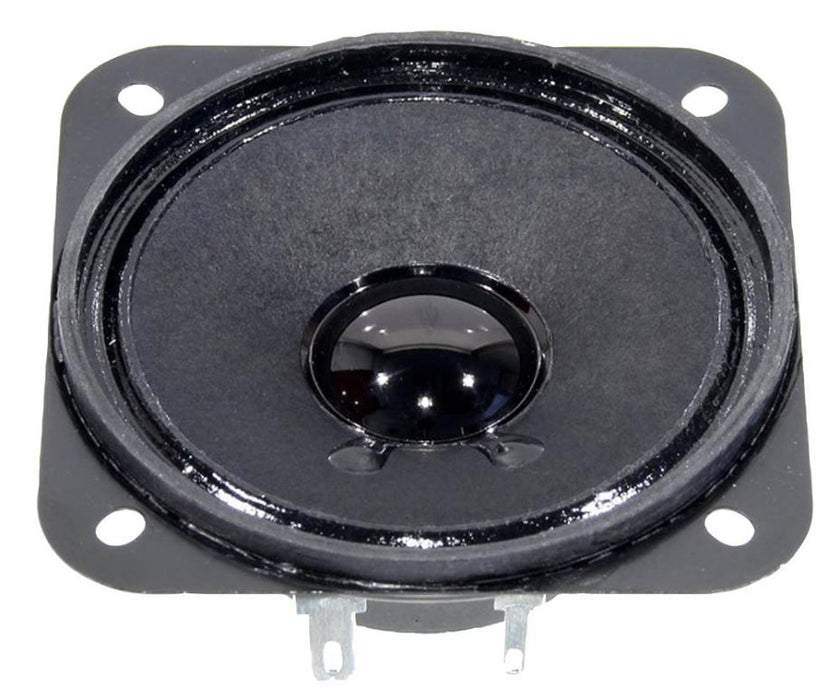

5W Full Range Driver 3" 8R/100V
Output power: 5W rms (max. 7W)
Nominal impedance: 8R
Frequency response: 150Hz to 20kHz
Mean SPL: 87dB (1W@1m) max. 94dB
Resonant frequency: 250Hz
Cutout diameter: 71mm
Mounting holes distance: 85mm
Operating temperature: -20 to +70°C
Dimensions (HxWxD): 77x77x34mm
Weight: 150g
Applications
Audio, Business, Commercial, Education, Installations, Office, Public, Signalling
Driver Type: Full-range
External Diameter - Metric: 77mm
External Width - Metric: 77mm
Impedance: 8ohm
Power Rating Nom: 5W
Sound Level SPL: 89dBA
Speaker Shape: Round with Square Frame
External Diameter - Imperial: 3.031"
Resonant Frequency: 250Hz
External Width - Imperial: 3.031"
Frequency Response Min: 150Hz
Frequency Response Max: 20kHz
Speaker Mounting: Through Hole
Power Rating Max: 7W
External Length - Metric: 77mm
External Depth - Metric: 34mm
External Length - Imperial: 3.031"
External Depth - Imperial: 1.339"
Product Range: WHALE Ceiling Speakers
