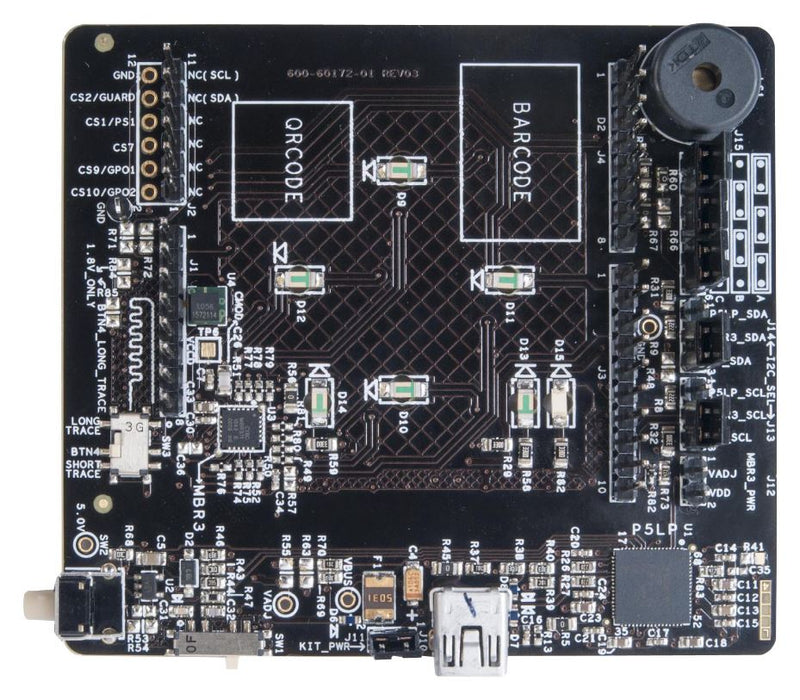

Evaluation Board, MBR3 Capsense
4 CapSense buttons of two different sizes
LEDs corresponding to sensors indicating button touch
Pushbutton switch to reset the CY8CMBR3116
Shield electrode pin for water tolerance
I2C selection jumpers
Arduino compatible headers
Proximity loop and a corresponding LED to indicate proximity state (on/off)
Host interrupt pin
2 slide switches to vary trace capacitance & demonstrate SmartSense auto tuning
Applications
Embedded Design & Development
Contents
CY3280-MBR3 CapSense MBR3 Evaluation board, Water dropper, Additional 1mm plastic overlay, USB cable, Quick start guide.
Warnings
ESD sensitive device. Precaution should be used when handling the device in order to prevent permanent damage.
Kit Application Type: Sensing - Touch, Proximity
Silicon Manufacturer: Cypress
Silicon Core Number: CY8CMBR3116
Application Sub Type: Capacitive Touch
Kit Contents: Eval Board CY8CMBR3116, A to Mini-B USB Cable, Water Dropper, 1x Additional Overlay of 1mm Thickness
