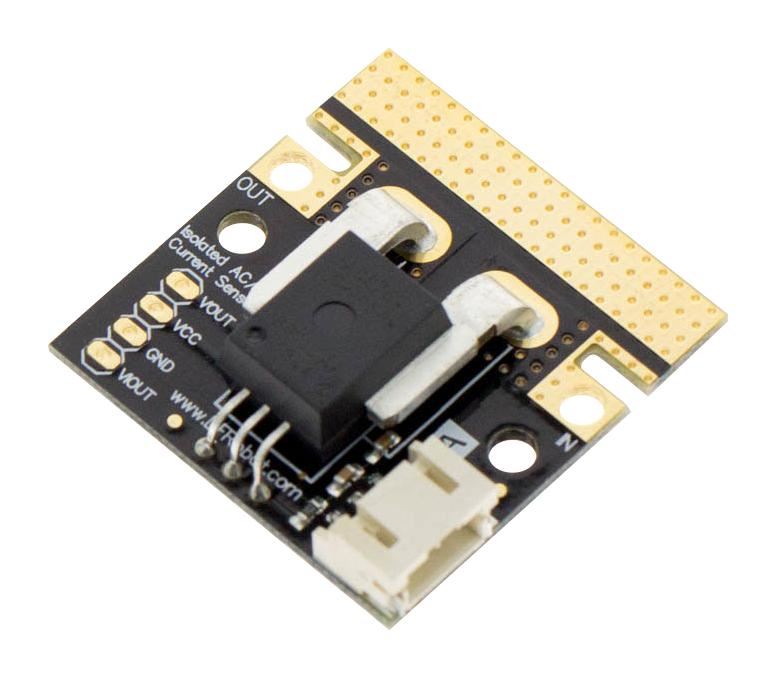

Gravity Analogue 50A AC / DC Current Sensor, ACS758
Arduino interface compatible
120kHz typical bandwidth
Output voltage proportional to AC or DC currents
Factory-trimmed for accuracy
Extremely stable output offset voltage
Nearly zero magnetic hysteresis
Total output error improvement through gain and offset trim over temperature
Monolithic hall IC for high reliability
Ultra-low power loss: 100µR internal conductor resistance
Operating Voltage: 3.3-5V (analogue)
Peak Measuring Voltage: 3000V AC, 500V DC
Current Measuring Range: -50 to +50A
Sensitivity: 40mV/A
Operating Temperature: -40 to 150°C
Board size: 34x34mm
Applications
Embedded Design & Development, Electronics Design, IoT (Internet of Things)
Contents
Sensor board, Analogue sensor cable (FIT0031).
Accessory Type: Sensor Breakout Board
For Use With: Arduino IO Expansion Shield
Product Range: Gravity Series
